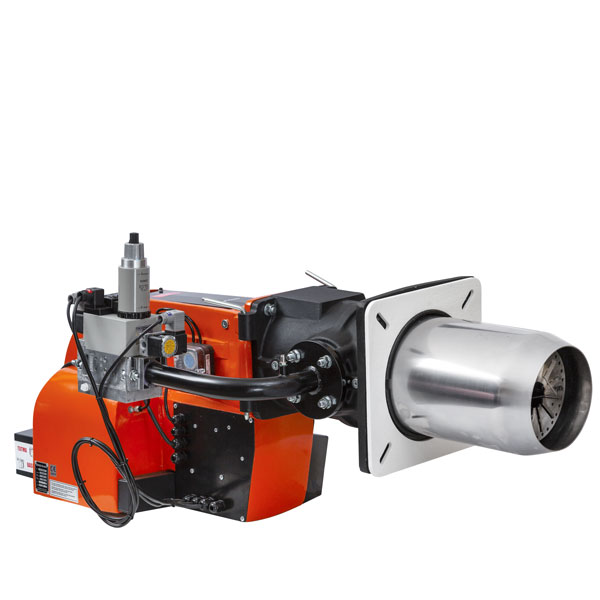

C 135 AS - BS - CS gaz brülörleri, iki kademeli çalışma prensibiyle, bütün ısıtma projelerine ve standartlarına uygun olarak doğal gaz ve ya likit petrol gazı (LPG) ile çalışacak şekilde imal edilir.
Teslimat programı ve sipariş için lütfen satış yöneticimizle satis@gokce.com e-posta adresimiz üzerinden iletişime geçin..
C 135 AS Two Stage type of gas burners are manufactured to operate with natural gas or liquid petroleum gas (LPG) in accordance with all heating projects and standards with a two-stage operating principle.
BRÜLÖR MODELİ |
C 135 AS |
RÖLE |
SIEMENS LME 22 |
ALEV DEDEKTÖRÜ |
IONIZATION ELECTRODE |
FAN MOTORU |
2.2 kW, 380V, 2800 d/d |
HAVA PRESOSTATI |
DUNGS LGW 3A2 |
TRANSFORMATÖR |
SEK. 2x5000V |
SERVOMOTOR |
SIEMENS SQN 31.121 |
ELECTRICAL PANEL |
ON THE BURNER |
FAN |
D250x80mm d= 24mm |
MULTIBLOK 21 mbar |
DUNGS MBZRDLE 420 B01 |
MULTIBLOK 300 mbar |
DUNGS MBZRDLE 415 B01 |
GAZ KAÇAĞI KONTROL |
------- |
